ESP Series
Compact Nitrogen Generator

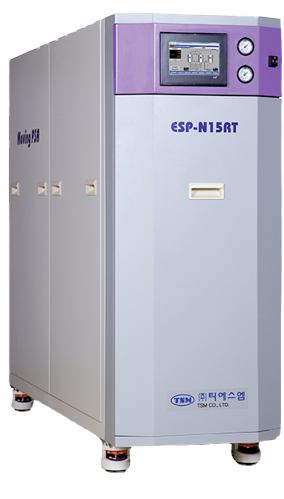

ESP N2 Generator
"Smart N2 supplier, Minimal Cost and Space"
Designed for efficiency and performance, this compact Nitrogen creator seamlessly integrates into your production line, providing optimized nitrogen flow when you need it most.
- 01. Adaptive Industrial Design: Built on decades of accumulated technological expertise, the ESP series is optimized for indoor efficiency. We have condensed high-capacity performance into a low-noise form factor that respects your working environment.
- 02. Agile Mobility: Fixed equipment is a liability. The ESP features industrial-grade casters in a very compact size as a standard, granting you the freedom to reconfigure your production floor instantly to maximize usable workspace.
- 03. Intelligent Synchronization: Designed for perfection, the ESP actively communicates with the TRN Reflow oven. It continuously monitors the atmosphere, delivering the precise nitrogen flow exactly when needed—ensuring high purity and low air consumption.
Intelligent Digital Control
Precision Dynamics. Zero Waste.

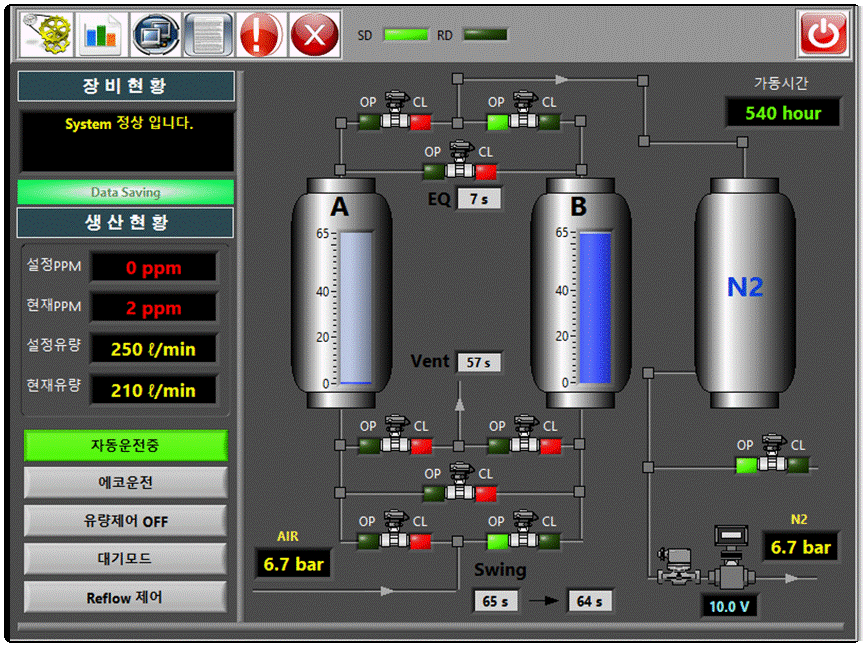

Designed for the modern operator, the ESP features a user-centric Touch Interface. The sophisticated GUI provides clear, real-time data on supply levels and purity, making complex management effortless.
Under the hood, advanced electronic valves actively stabilize flow against pressure fluctuations. This precision engineering eliminates nitrogen waste, ensuring zero-loss performance and significantly optimizing your operational costs.
Universal Compatibility & Synergy
Universal Compatibility. Unrivaled Synergy via RS485 Link.

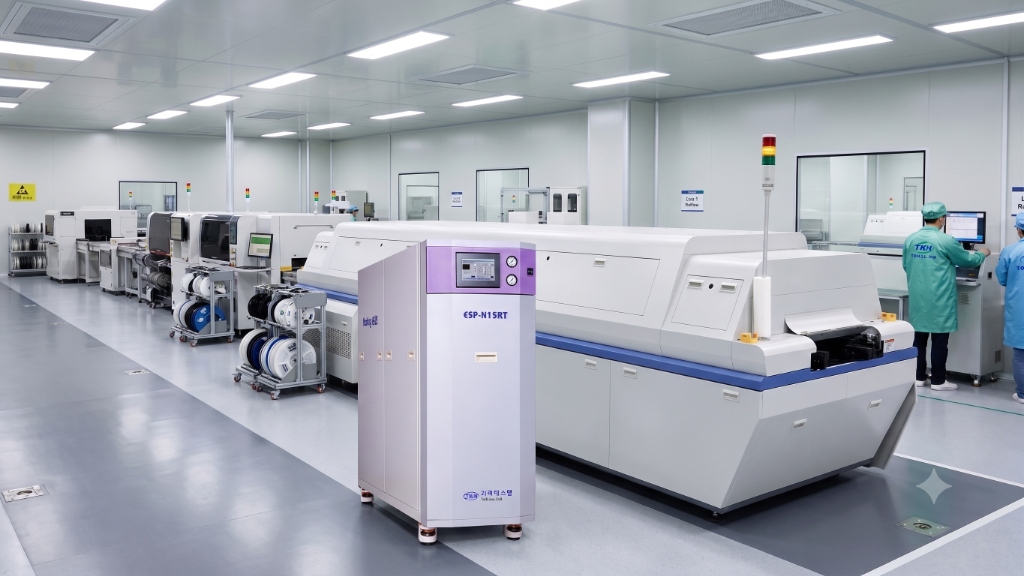

While the ESP N2 Generator is engineered to deliver robust high purity N2 supply in any production environment as a stand-alone solution, it achieves its peak potential when paired with the TRN Reflow Oven.
Once connected via RS485, the systems function as one. Through Native Integration, the TRN Reflow software takes direct control of the generator, allowing you to tailor the nitrogen atmosphere specifically for each product recipe. This adaptive approach ensures precise quality control while maximizing energy efficiency—delivering the perfect flow, only when needed.
Model Specifications
Capacity, dimensions, and TRN Reflow compatibility matrix
| Model | Capacity (99.99%) | Discharge Pressure | Air Compressor | Dimension (L x W x H) | Weight | Compatible Reflow Model |
|---|---|---|---|---|---|---|
| ESP-N12R-99 | 12N m³/h | 0.5 MPa | 7.5 kW | 1,500 x 520 x 1,460 mm | 890 kg | Stand-alone / custom |
| ESP-N15R-99 | 15N m³/h | 0.5 MPa | 11 kW | 1,500 x 520 x 1,460 mm | 910 kg | TRN III-a (102S, 103S) |
| ESP-N18R-99 | 18N m³/h | 0.5 MPa | 13 kW | 1,680 x 700 x 1,460 mm | 1,000 kg | TRN III-a (93M, 103M) |
| ESP-N20R-99 | 20N m³/h | 0.5 MPa | 15 kW | 1,680 x 700 x 1,460 mm | 1,100 kg | TRN III-a (123M, 133M) |
| ESP-N25R-99 | 25N m³/h | 0.5 MPa | 17 kW | 1,680 x 880 x 1,460 mm | 1,260 kg | TRN III-a (123M, 133M) |
| ESP-N30R-99 | 30N m³/h | 0.5 MPa | 22 kW | 1,680 x 880 x 1,460 mm | 1,430 kg | High-capacity custom |
