Software Solution
Reflow, made visible.
Reflow, Reimagined.
Visualizing the unseen. Controlling the complex.
Reflow soldering is a symphony of thermal precision, where temperature profiles, oxygen levels, conveyor speed, blowers, heaters, and flux reclamation move in unison.
The TSM Software Solution is engineered to bring clarity to complexity, control to your fingertips, and speed to your response. It translates millions of complex process data points into a single, highly transparent, and elegant interface.
Process, made transparent.
Operation, made simple.
Management, made smarter.
Intuitive MMI
Everything in sight. Everything in control.

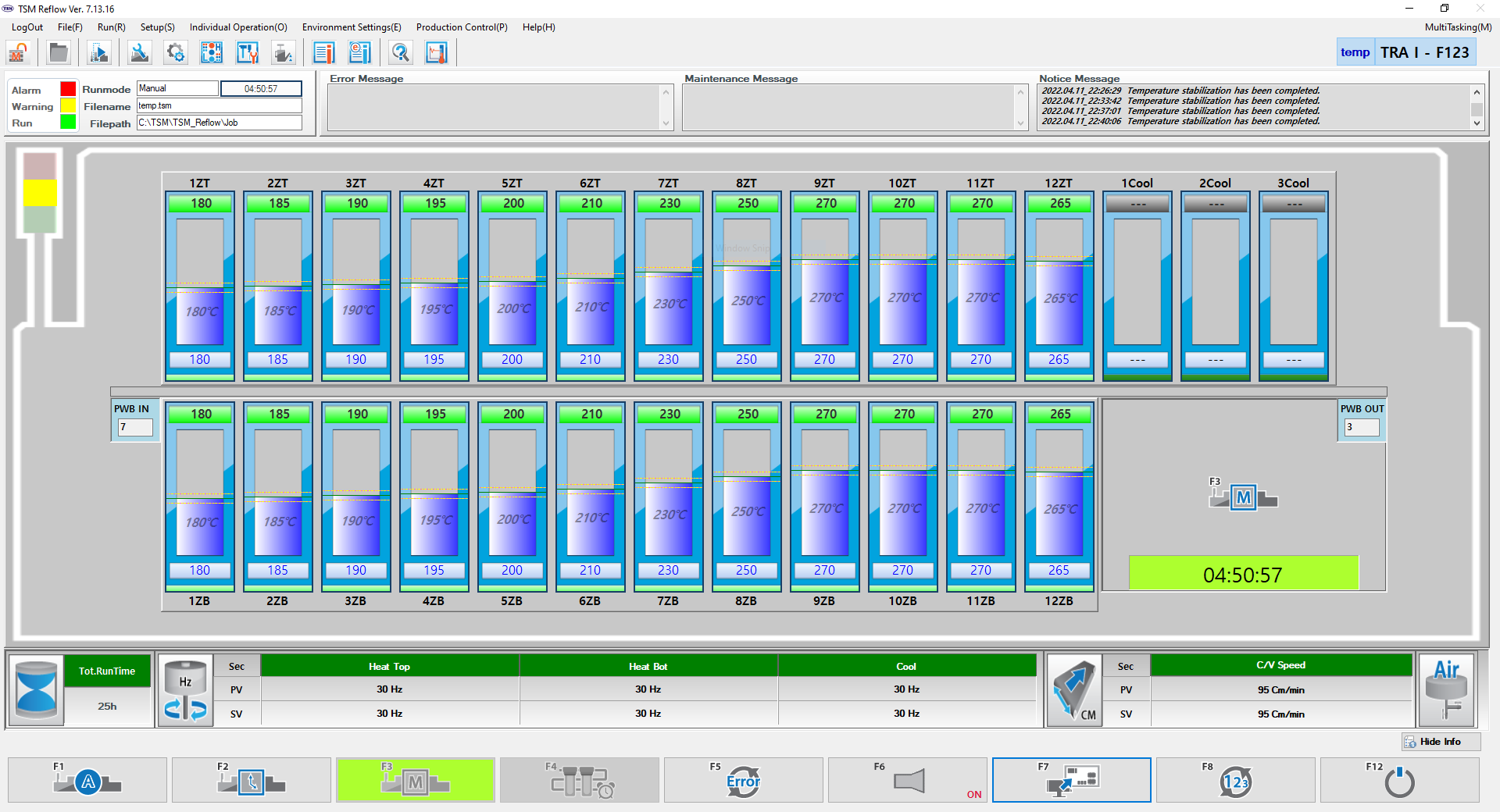

TSM’s intuitive Man-Machine Interface (MMI) visualizes critical metrics—temperature profiles, O2 ppm levels, conveyor status, and maintenance schedules—minimizing cognitive load. Infographic-driven UX design strips away clutter, revealing the entire thermal flow at a single glance.
Developed entirely by our dedicated in-house software engineering team, the MMI is fully customizable to integrate seamlessly with your proprietary factory databases, MES systems, and production environments.
Real-Time Monitoring
Every process. Every moment. Every data point.

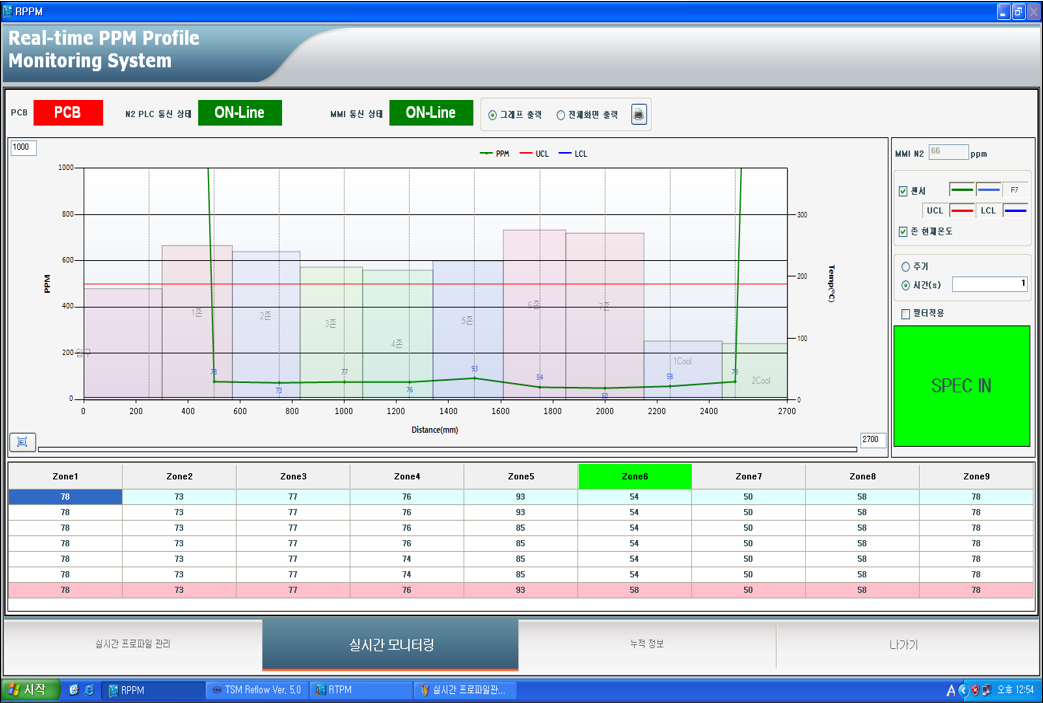

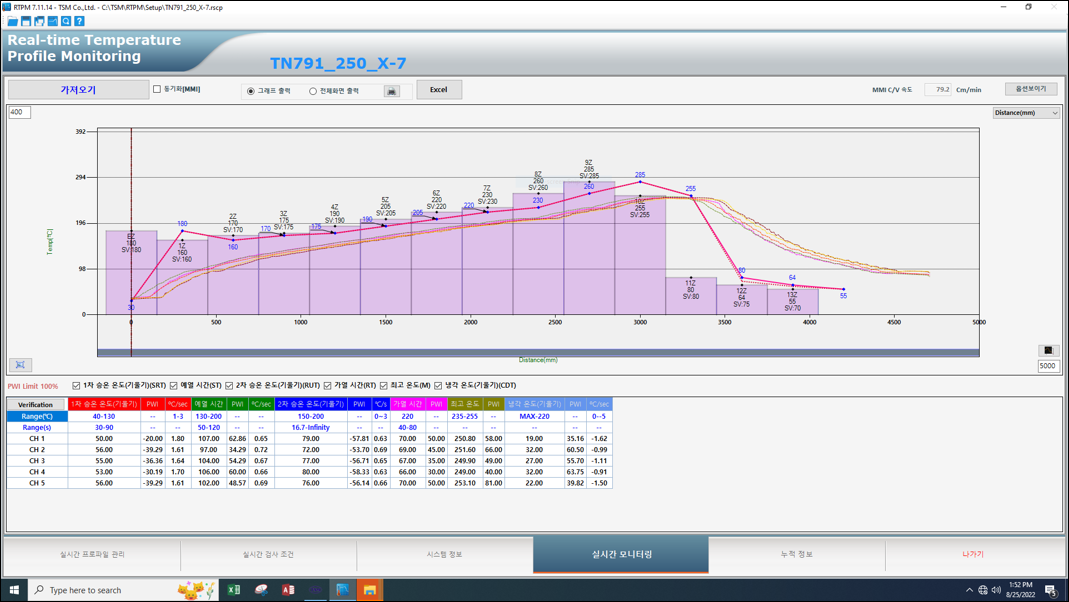

TSM Software Solution continuously tracks the variables that define your yield. With RTPM (Real-Time Temperature Profiling), trace actual product temperatures as they traverse the chamber. With RPPM (Real-Time O2 PPM Monitoring), track exact oxygen concentrations vital for nitrogen soldering.

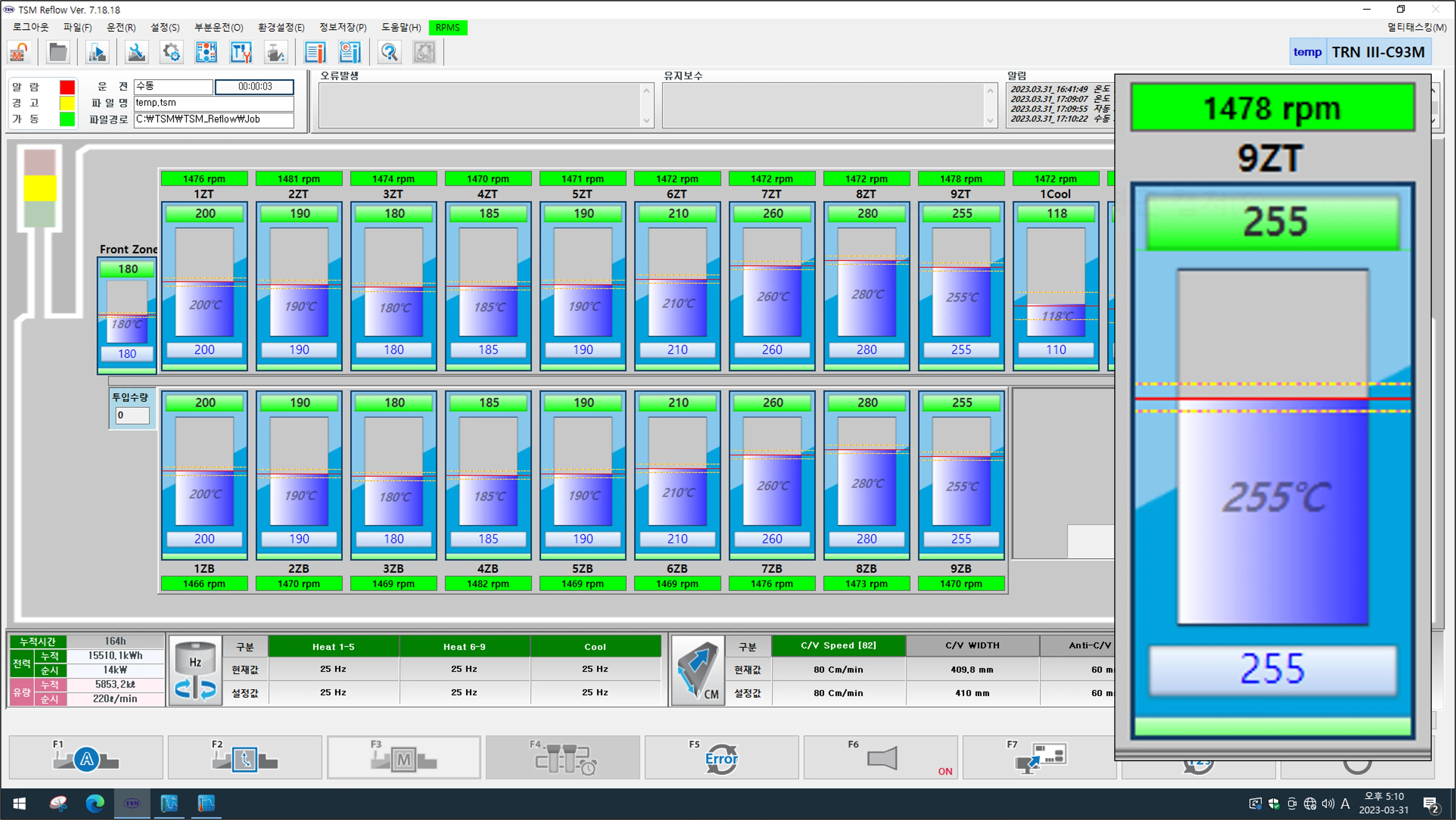

From blower speeds and heater currents to heater outputs and flux management system (FMS) circulation temperatures, every critical variable is logged. Supported by SMS (Smart Monitoring & Management System), enjoy remote transparency over machine state and alerts via central server or mobile device.
Real-time data for real production confidence.
Safety & Alarm
Designed to protect. Ready to alert.
Thermal systems operate at extreme temperatures and voltages. Safety isn’t an option; it is built into the core.

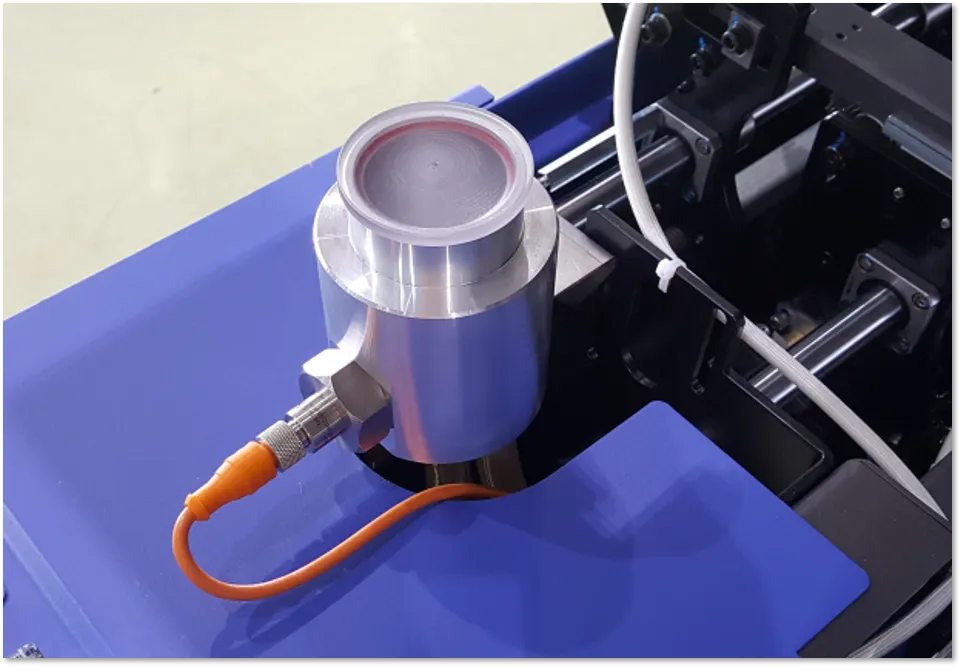

State-of-the-art sensors monitor blower motor and transformer temperatures to prevent overheating. Intelligent fluid level detectors monitor chain lubrication and flux accumulation, prompting maintenance before failures arise.
Alerts before downtime.
Software Matrix
OS platforms, communication protocols, and MES integrations
| Module | Feature Specifications | Key Function |
|---|---|---|
| MMI Control | Infographic UX, Windows 10/11 Compatible | Recipe Management, Realtime Flow & Temperature GUI |
| RTPM | Real-time Temperature Profile Monitoring (Up to 16 Zones) | Continuous profiling of PCB boards, yield trace |
| RPPM | Real-time O2 Concentration Control (0 - 10,000 ppm) | Nitrogen density stabilization, automated flow matching |
| SMS | Smart Monitoring & Management System (Web/Mobile App) | Remote dashboard, status push alerts, logs server query |
| DB / MES Link | OPC-UA, Modbus TCP, MES / SECS-GEM Protocol compatibility | Central factory automation, trace log exports |
Optimize Your Thermal Process
Deploy the TSM Software Solution to gain complete visibility over your SMT line. Contact our engineering team for customizations.
